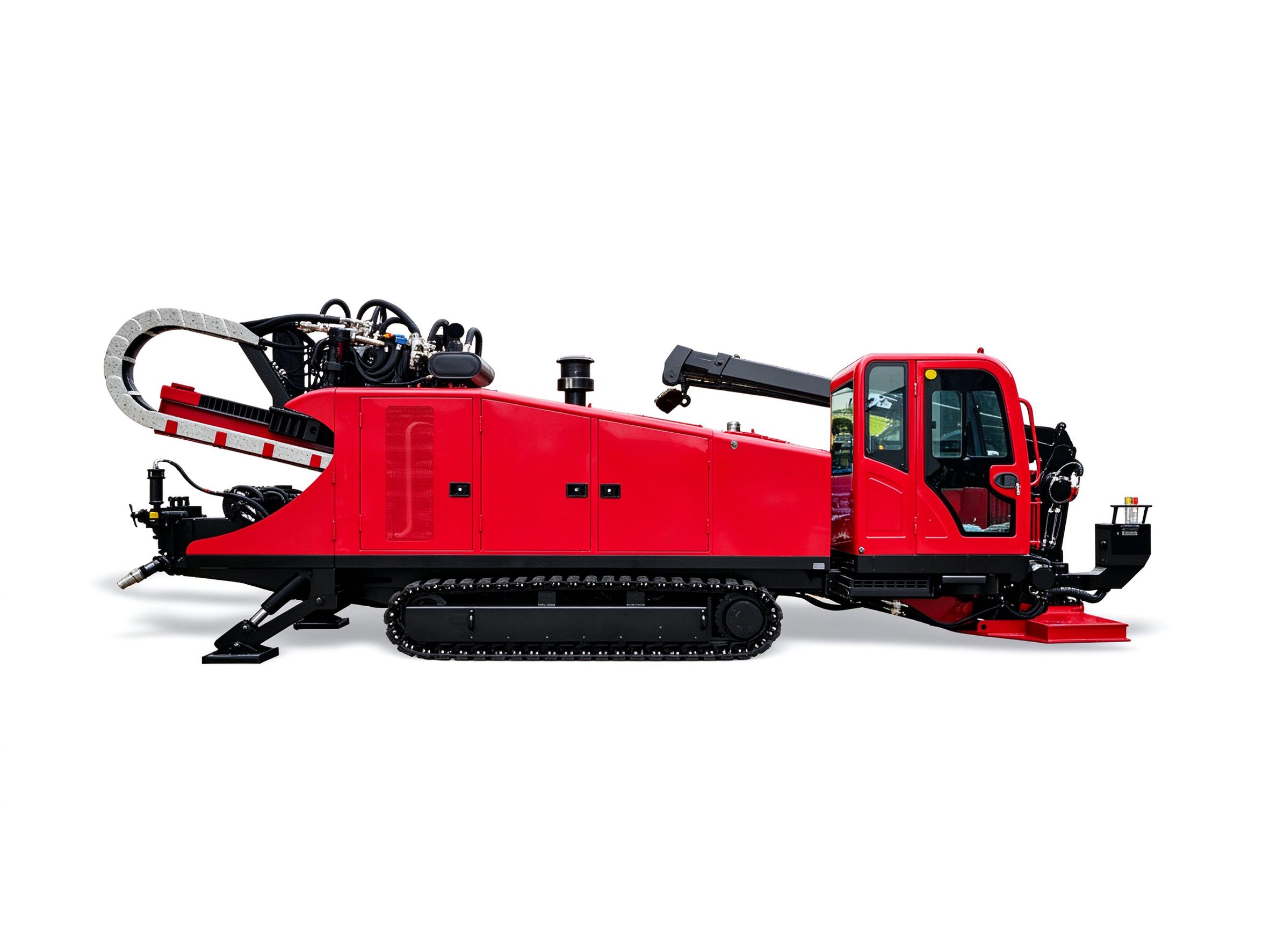

Description
Main Parameters
| Dimensions (L×W×H) | 8.5 m / 2.28 m / 2.6 m | Machine Weight | 16.5 T |
| Rotary Head Max. Speed | 126 r/min | Rotary Head Max. Torque | 27,000 N·m |
| Thrust-Pull Back Force | 0 – 550 kN (upgradable to 1,100 kN) | Carriage Speed | 57 m/min |
| Engine Power | 221 kW / 2,200 rpm | Drill Rod Spec. | Ø89 / 102 × 4500 mm |
Performance Characteristics
- Equipped with a Cummins Stage IV electronically controlled turbocharged diesel engine, delivering strong power output and stable performance.
- The rotation circuit uses a closed-loop system with Sauer-Danfoss main pumps paired with Poclain low-speed high-torque motors, ensuring both high torque and high-speed output. In closed-loop hydraulic circuits, Poclain motors provide strong impact resistance and long service life even under rocky and complex formation conditions.
- The pull-back main pump is a load-sensing proportional piston pump, offering high efficiency, high pressure rating, and long service life.
- Gear and rack transmission with proportional variable pull-back motors and gearboxes drives the rotary head trolley.
- The clamp is angled 10 degrees inward toward the operator, making clamp operations easy to observe and monitor.
- Welded steel chassis fitted with rubber track shoes for high structural strength and long service life; crawler travel control integrates both manual and electric control for safe, reliable operation.
- Standard equipment includes a rotating rod handler, enclosed cabin with air conditioning, and onboard crane — reducing auxiliary crew workload and improving construction efficiency.
- Rotation and pull-back use friction-position pilot joysticks with proportional control and infinitely variable speed adjustment for operator comfort and reduced fatigue.
- Standard equipment includes a rotating rod handler, enclosed cabin with air conditioning, and onboard crane — reducing auxiliary crew workload and improving construction efficiency.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 221 |
| Rated Speed | Rated speed | rpm | 2,200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 27,000 |
| Max. Speed | Spindle speed, max. | rpm | 126 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 550 (upgradable to 1,100) |
| Carriage Speed | Carriage speed | m/min | 0 – 57 |
| Entry Drill Angle | Entry drill angle | ° | 0 – 15 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 8.5 × 2.28 × 2.6 |
| Weight | Machine weight | T | 16.5 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Ø89 / 102 × 4500 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 800 |
| Max. Pressure | Max. pressure | MPa | 10 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 10 |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | 760 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | — |
| Max. Break Torque | Max. break torque | N·m | — |
| Clamp Range | Clamp range, max. | mm | — |
| Wrench Separation | Distance between wrenches, max. | mm | — |
