Description
| Dimensions (L×W×H) | 21.6 / 3.2 / 3.7 m (main) 8.5 / 3.1 / 3.4 m (power station) |
Machine Weight | 67 T |
| Rotary Head Max. Speed | 94 r/min | Rotary Head Max. Torque | 320,000 N·m |
| Thrust-Pull Back Force | 13,500 kN | Carriage Speed | 0 – 45 m/min |
| Engine Power | 563 kW × 3 + 177 kW × 1 | Drill Rod Spec. | — |

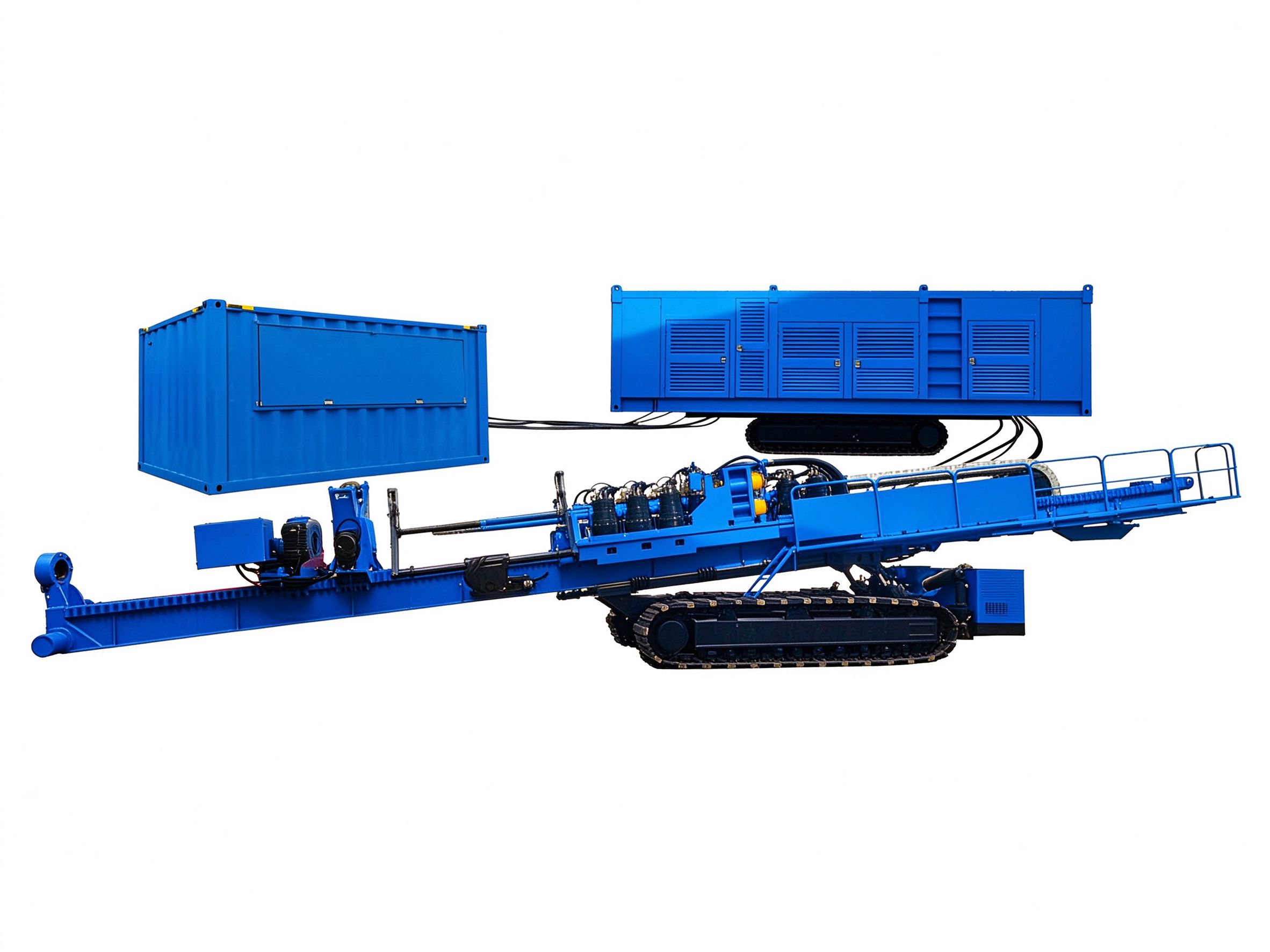

The DDW-1350/320 HDD rig adopts a crawler self-propelled chassis. Its power system uses four Dongfeng Cummins 563 kW high-power engines plus one 177 kW auxiliary unit, delivering strong power output with high reliability. The main hydraulic system features closed-loop electro-hydraulic proportional control for high efficiency and energy saving, effectively protecting the rotary and pull-back motors under complex formations and high-load conditions, and extending their service life.
The rotation system is driven by low-speed, high-torque Poclain hydraulic motors with direct-drive design — eliminating gearboxes and simplifying the cooling configuration, which makes the system more reliable and efficient. The auxiliary circuit uses a load-sensing proportional control architecture.
The rig is built on a modular design: major components can be split for transport and reassembled on site, solving overweight and oversized transport constraints. The machine control system uses PLC with a powerful human-machine interface. Main hydraulic and electrical components are sourced from internationally renowned brands for stable performance and low failure rate.
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 563 × 4 + 177 × 1 |
| Rated Speed | Rated speed | rpm | 2,100 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 320,000 |
| Max. Speed | Spindle speed, max. | rpm | 94 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 0 – 13,500 |
| Carriage Speed | Carriage speed | m/min | 0 – 45 |
| Entry Drill Angle | Entry drill angle | ° | 8 – 12 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 21.6 × 3.2 × 3.7 (main unit) 8.5 × 3.1 × 3.4 (power station) |
| Weight | Machine weight | T | 80 (main unit) 32 (power station) |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | — |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 4,000 |
| Max. Pressure | Max. pressure | MPa | 15 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | — |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | 1,200 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 1,140 |
| Max. Break Torque | Max. break torque | N·m | 710 |
| Clamp Range | Clamp range, max. | mm | 360 |
| Wrench Separation | Distance between wrenches, max. | mm | 254 |
