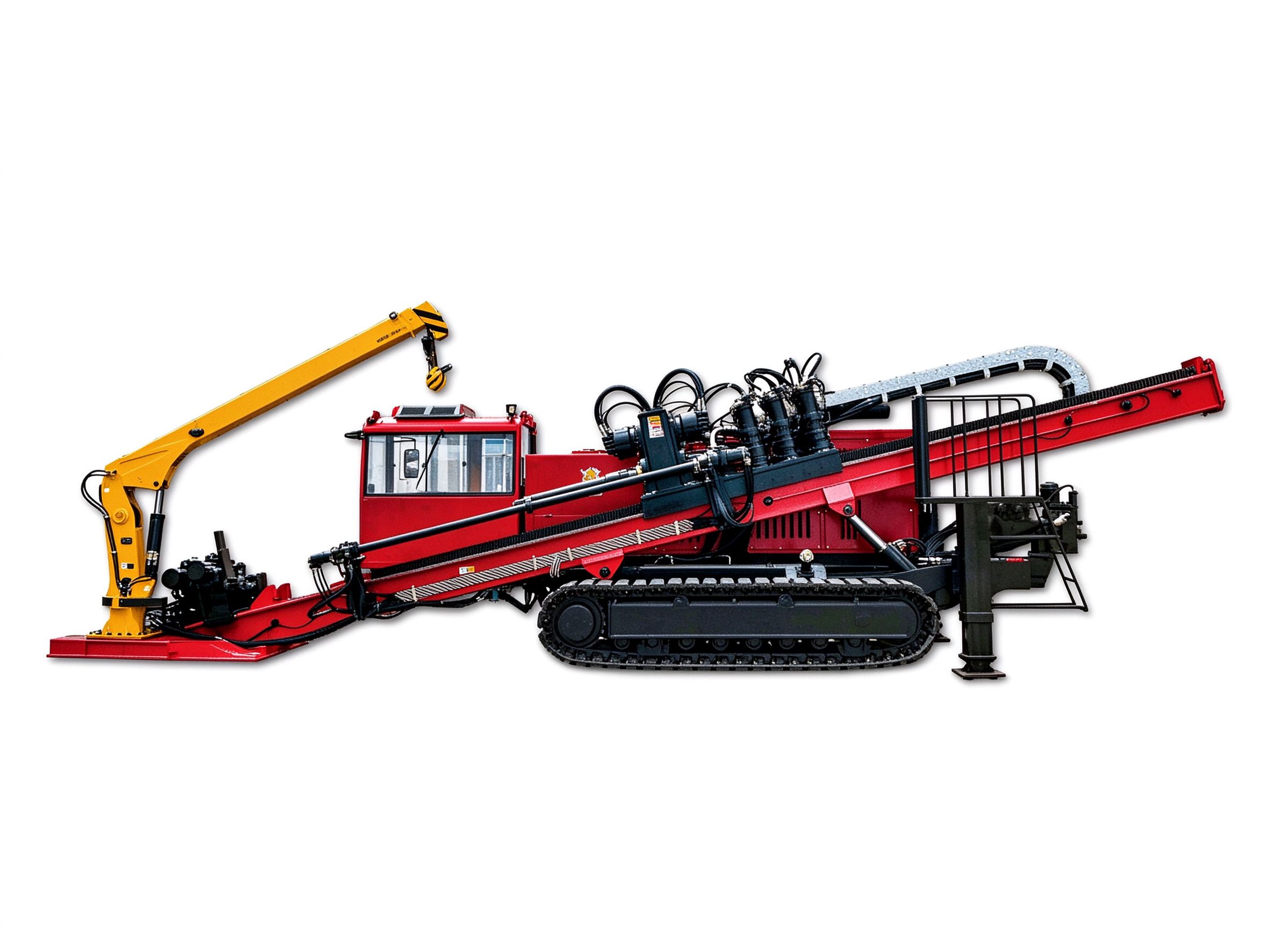

Description
Main Parameters
| Dimensions (L×W×H) | 7.26 m / 2.35 m / 2.67 m | Machine Weight | 14 T |
| Rotary Head Max. Speed | 180 r/min | Rotary Head Max. Torque | 25,000 N·m |
| Thrust-Pull Back Force | 0 – 450 kN (upgradable to 900 kN) | Carriage Speed | 0 – 46 m/min |
| Engine Power | 194 kW / 2,200 rpm | Drill Rod Spec. | Ø83 / 89 × 3000 mm |
Performance Characteristics
- Equipped with a Cummins Stage IV electronically controlled turbocharged diesel engine, delivering strong power output with energy-saving and environmentally friendly performance.
- Hydraulic and electrical systems are engineered for high reliability, low failure rate, and easy maintenance.
- Core system components use imported or joint-venture brands. The rotary head uses original French Poclain low-speed high-torque motors with direct drive, effectively solving the traditional problem of short gearbox service life caused by heat buildup.
- The rotation circuit uses a closed-loop system with closed-loop piston pumps paired with French Poclain low-speed high-torque motors to deliver both high torque and high-speed output. In closed-loop hydraulic circuits, Poclain motors provide strong impact resistance and long service life even in rocky and complex formations. Thrust/pull-back and auxiliary circuits use Yuken hydraulic pumps for high efficiency and reliability.
- Gear and rack transmission with two sets of dual-speed piston pull-back motor reducers drives the rotary head trolley; rotation offers two speed ranges and thrust/pull-back offers three speed ranges, all infinitely adjustable.
- Rotation and thrust/pull-back use pilot control with multifunction joysticks integrating auxiliary functions for comfortable, simple operation.
- A four-bar linkage boom lifting mechanism keeps the tracks firmly on the ground even at maximum drilling angles, effectively ensuring rig stability during both drilling and pull-back operations.
- The clamp is angled 10 degrees inward toward the operator, making clamp operations easy to observe and monitor.
- Crawler travel offers two speed ranges for faster site relocation; the integrated manual/wire-controlled travel system is safe and reliable, with improved operator visibility.
- Welded steel chassis with rubber track shoes provides strong traction and prevents damage to paved road surfaces.
- Equipped with a Cummins Stage IV electronically controlled turbocharged diesel engine, delivering strong power output with energy-saving and environmentally friendly performance.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 194 |
| Rated Speed | Rated speed | rpm | 2,200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 25,000 |
| Max. Speed | Spindle speed, max. | rpm | 180 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 0 – 450 (upgradable to 900) |
| Carriage Speed | Carriage speed | m/min | 46 |
| Entry Drill Angle | Entry drill angle | ° | 14 – 21 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 7.26 × 2.36 × 2.67 |
| Weight | Machine weight | T | 14 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Ø83 / 89 × 3000 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 600 |
| Max. Pressure | Max. pressure | MPa | 8 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | — |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | — |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | — |
| Max. Break Torque | Max. break torque | N·m | — |
| Clamp Range | Clamp range, max. | mm | — |
| Wrench Separation | Distance between wrenches, max. | mm | — |
