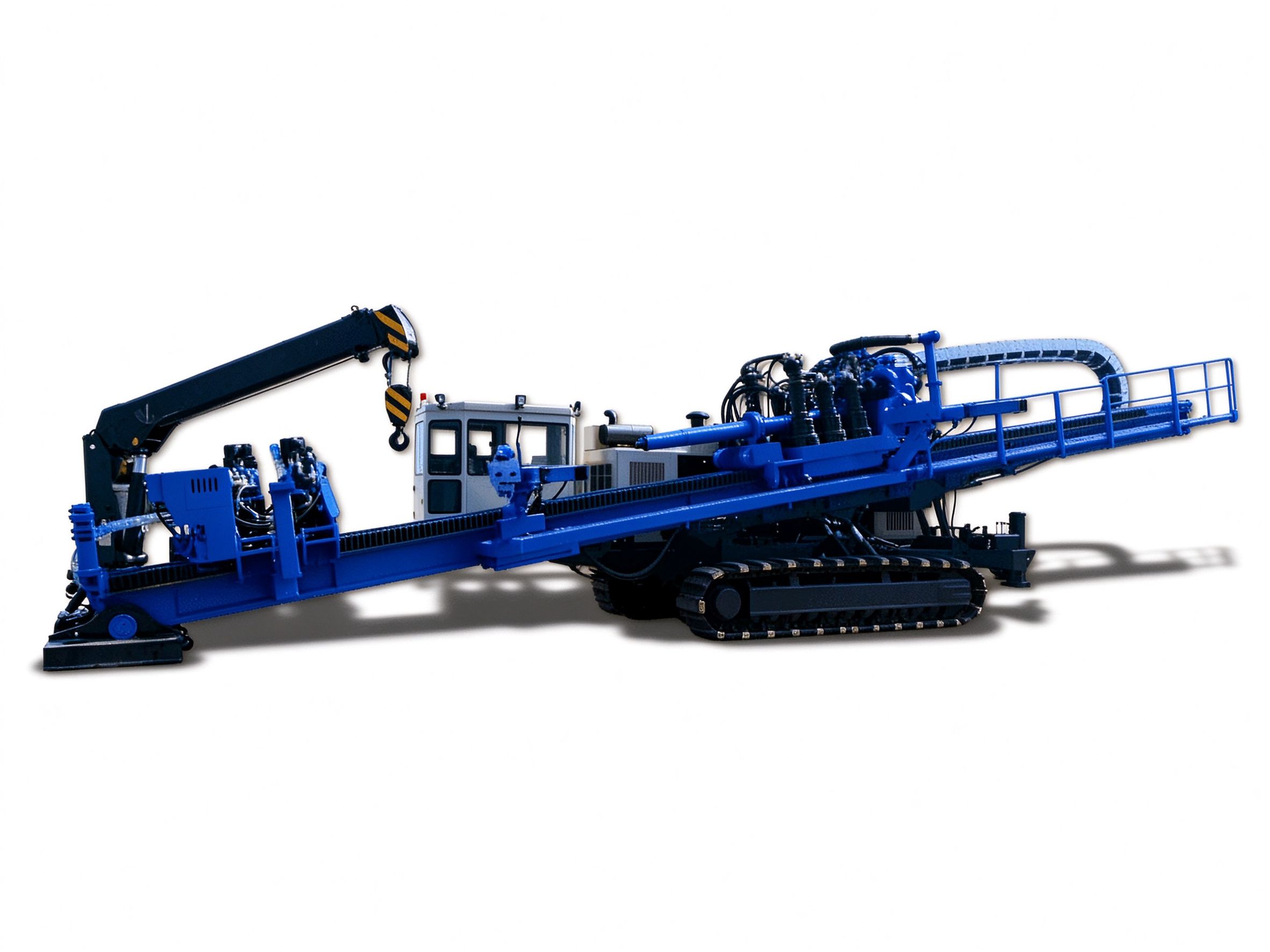

Description
Main Parameters
| Dimensions (L×W×H) | 17.3 m / 3.0 m / 3.5 m | Machine Weight | 50 T |
| Rotary Head Max. Speed | 90 r/min | Rotary Head Max. Torque | 130,000 N·m |
| Thrust-Pull Back Force | 0 – 3,600 kN | Carriage Speed | 0 – 36 m/min |
| Engine Power | 294 kW × 2 | Drill Rod Spec. | Ø140 × 9600 mm |
Performance Characteristics
Electrical & Control System
- Equipped with an advanced PLC control system with servo control for fast response and smooth operation.
- Rotary torque, thrust, and pull-back force are displayed on a large color touchscreen for intuitive monitoring.
- Powerful human-machine interface enables automatic fault diagnosis and intelligent control.
- Rotation and thrust/pull-back are controlled by multifunction pilot joysticks with ergonomic design, reducing operator fatigue.
- The control panel displays rotary torque and thrust/pull-back force in real time, with adjustable proportional control of maximum output.
- The rotation system features an automatic rod-changing function; the drill can reverse within a set range when encountering hard formations.
- Automatic rotation reverse function reduces pressure and improves drilling efficiency.
- The open operator station provides wide visibility for improved safety.
Clamp & Mechanical Features
- The clamp uses a closed three-jaw structure with high clamping force, capable of traveling the full length of the mast; front and rear clamps can separate up to 254 mm.
- Floating spindle design protects drill rod threads from damage.
- Standard automatic rod handler improves construction efficiency and ensures operator safety.
Power & Mast Structure
- Dual-power hydraulic system allows selecting single or dual system operation per project requirements, greatly reducing fuel and operating costs.
- The removable rod handler reduces single-component transport weight and shortens transport length.
- Powered by a Cummins Stage III turbocharged engine for strong power and stable performance.
- The rotary head and clamp use detachable structures for easy transport, with quick-connect couplings.
- Both rotation and pull-back circuits use closed hydraulic systems for higher system pressure, no impact shock, and improved efficiency.
- Rotation uses imported Sauer-Danfoss closed-loop pumps paired with French Poclain low-speed high-torque motors for a perfect match.
- Pull-back uses Sauer-Danfoss closed-loop pumps with Brevini reducers for reliable performance in complex formations.
- The auxiliary hydraulic system uses advanced load-sensing proportional control for high efficiency and energy savings.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 294 × 2 |
| Rated Speed | Rated speed | rpm | 2,100 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 130,000 |
| Max. Speed | Spindle speed, max. | rpm | 90 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 0 – 3,600 |
| Carriage Speed | Carriage speed | m/min | 0 – 36 |
| Entry Drill Angle | Entry drill angle | ° | 9 – 16 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 17.3 × 3.15 × 3.5 |
| Weight | Machine weight | T | 55 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Ø140 × 9600 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 2,500 |
| Max. Pressure | Max. pressure | MPa | 20 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 38 |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | 670 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 942 |
| Max. Break Torque | Max. break torque | N·m | 420,000 |
| Clamp Range | Clamp range, max. | mm | 320 |
| Wrench Separation | Distance between wrenches, max. | mm | 254 |
