Description
Main Parameters
| Dimensions (L×W×H) | 6.7m / 2.28m / 2.6m | Machine Weight | 10.5 T |
|---|---|---|---|
| Rotary Head Max. Speed | 225 / 237 r/min | Rotary Head Max. Torque | 15000 / 2700 N·m |
| Thrust-Pull Back Force | 0 – 350 kN | Carriage Speed | 38 m/min |
| Engine Power | 153 kW / 2200 rpm | Drill Rod Spec. | Φ89×3000 / Φ50×3000 |
Performance Characteristics

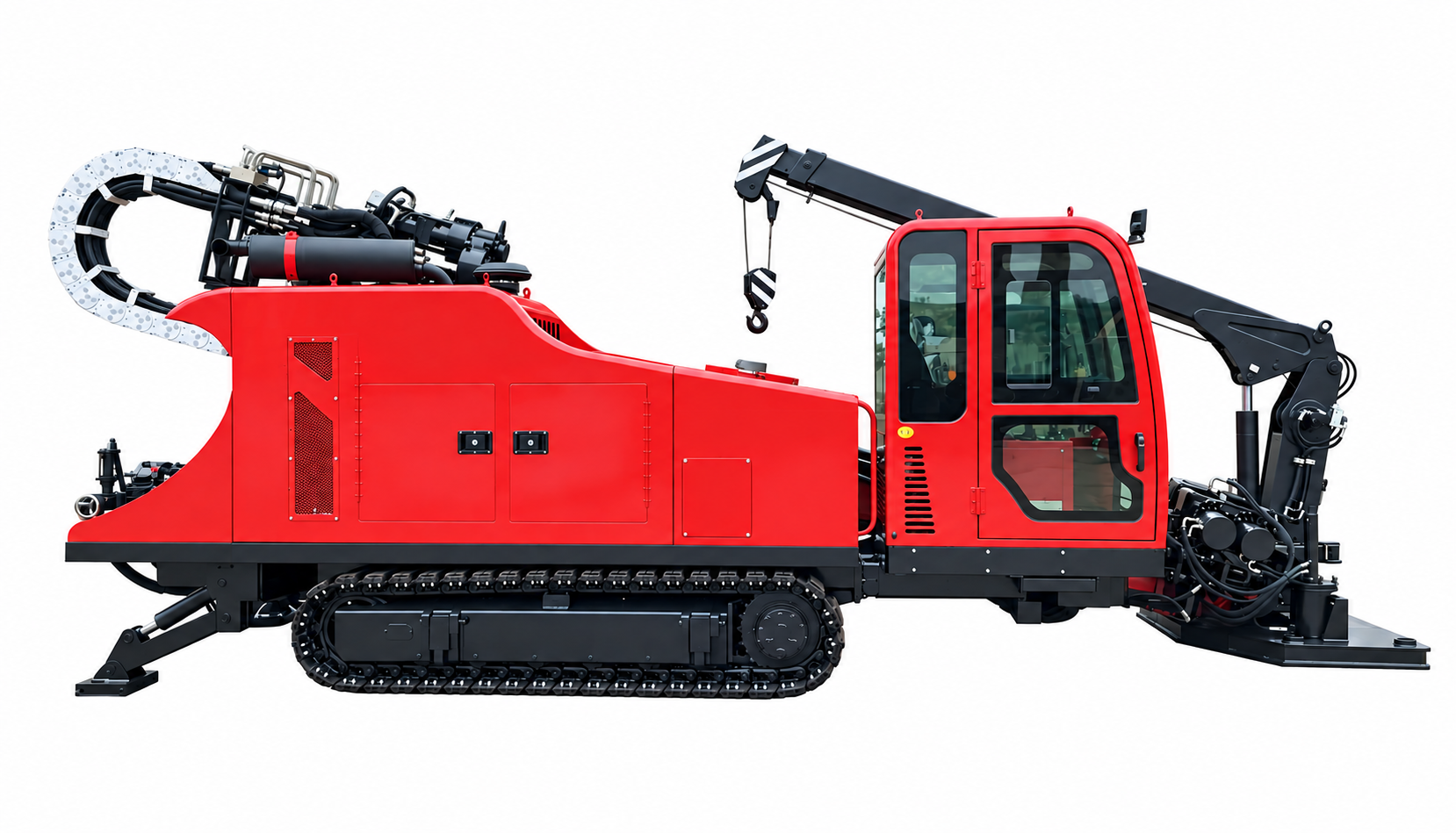

- The 3515AT rig is a full-terrain pipe-laying drilling rig, suitable for pipeline installation across a wide range of complex ground conditions.
- Rotary thrust/pull adopts PLC-constant-power electro-hydraulic control with a load-sensitive system, improving overall efficiency by 20% compared with conventional open-loop systems. It also enhances engine fuel efficiency, lowers operating costs, and delivers energy-saving and environmentally friendly performance. The hydraulic pump is a piston pump with higher pressure rating, longer service life, and greater system efficiency.
- Two-speed range with proportional control for rotation, thrust/pull, and crawler travel, providing infinitely variable speed adjustment.
- Rotation and thrust/pull are controlled by a multifunctional joystick that integrates all main operating movements into one ergonomic control point — simple, convenient, comfortable, and efficient.
- The rotation and thrust/pull functions are driven by imported Rexroth piston motors, delivering high torque and strong impact resistance.
- Gear and rack transmission with double hydraulic motor reducers drives the rotary head trolley forward and backward.
- Crawler travel is controlled from the main control station for safe and reliable operation.
- The boom lifting mechanism keeps the tracks firmly on the ground even at the maximum drilling angle, effectively ensuring rig stability during both drilling and pull-back operations.
- The clamp is angled inward toward the operator, making clamp work easy to observe and monitor.
- A clamp spring buffer device prevents accidental drill-rod thread or clamp damage caused by operator error.
- Welded steel chassis fitted with rubber shoes adapts to various road surfaces, offering high structural strength and long service life.
- Equipped with a mechanical arm, enclosed cabin, and standard air conditioning, it provides a comfortable working environment for drilling crew members and improves overall work efficiency.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 153 |
| Rated Speed | Rated speed | rpm | 2200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 15000 / 2700 |
| Max. Speed | Spindle speed, max. | rpm | 225 / 237 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-pull back force | kN | 0 – 350 |
| Carriage Speed | Carriage speed | m/min | 0 – 38 |
| Entry Drill Angle | Entry drill angle | ° | 15 – 20 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | Dimensions (L×W×H) | m | 6.7 / 2.28 / 2.6 |
| Weight | Machine weight | T | 10.5 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Φ89×3000 / Φ50×3000 |
| Mud Pump | |||
| Max. Flow | Max. flow rate | L/min | 350 |
| Max. Pressure | Max. pressure | MPa | 10 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 30 |
| Hydraulic Oil Capacity | Hydraulic tank capacity | L | 530 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 350 |
| Max. Breakout Torque | Max. breakout torque | N·m | 40000 |
| Clamp Range | Clamp through-hole dia., max. | mm | 145 |
| Distance Between Wrenches | Max. distance between wrenches | mm | — |
