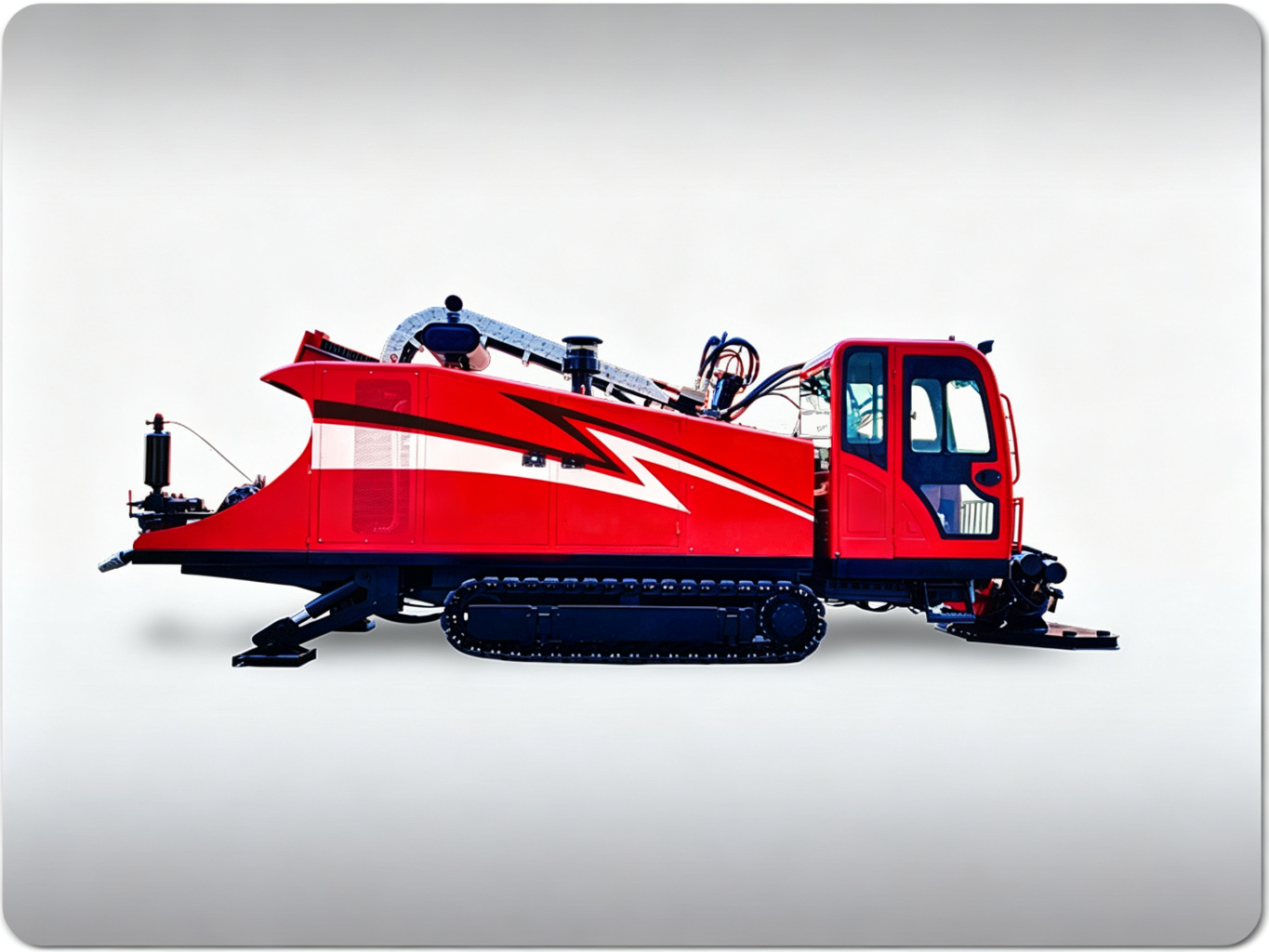

Description
Main Parameters
| Dimensions (L×W×H) | 7.26m / 2.35m / 2.67m | Machine Weight | 14 T |
|---|---|---|---|
| Rotary Head Max. Speed | 180 r/min | Rotary Head Max. Torque | 25000 N·m |
| Thrust-Pull Back Force | 0 – 450 kN (upgradable to 900 kN) | Carriage Speed | 0 – 46 m/min |
| Engine Power | 194 kW / 2200 rpm | Drill Rod Spec. | Φ83/89×3000 mm |
Performance Characteristics
- Equipped with a Cummins Stage IV electronically controlled turbocharged engine, delivering strong power with energy-saving and environmentally friendly performance.
- The hydraulic and electrical systems are engineered for high reliability, low failure rate, and easy maintenance.
- Core system components use imported or joint-venture brands. The rotary head uses original French Poclain low-speed high-torque motors for direct drive, effectively solving the traditional problem of reducer overheating and short service life.
- The rotation system adopts a closed-loop circuit with closed-loop piston pumps paired with French Poclain low-speed high-torque motors, ensuring high torque and high speed output. Poclain motors offer strong impact resistance and long service life even in rock formations and other complex ground conditions. The thrust/pull and auxiliary functions use Permco hydraulic pumps from the USA for high efficiency and reliability.
- Gear and rack transmission with dual piston pull-back motor reducers drives the rotary head trolley; rotation offers two speed ranges, and thrust/pull offers three speed ranges.
- Rotation and thrust/pull use pilot control with multifunctional joysticks integrating auxiliary functions for comfortable and simple operation.
- A four-bar linkage boom lifting mechanism keeps the tracks firmly on the ground even at large drilling angles, effectively ensuring rig stability during both drilling and pull-back operations.
- The clamp is angled 10° inward toward the operator, making clamp operations easy to observe and monitor.
- Crawler travel offers two speed ranges for improved site transfer efficiency. The integrated manual/radio remote travel system is safe and reliable, and provides wider visibility.
- Welded steel chassis fitted with rubber shoes provides strong traction and prevents damage to paved road surfaces.
- Equipped with a Cummins Stage IV electronically controlled turbocharged engine, delivering strong power with energy-saving and environmentally friendly performance.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 194 |
| Rated Speed | Rated speed | rpm | 2200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 25000 |
| Max. Speed | Spindle speed, max. | rpm | 180 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-pull back force | kN | 0 – 450 (upgradable to 900) |
| Carriage Speed | Carriage speed | m/min | 0 – 46 |
| Entry Drill Angle | Entry drill angle | ° | 14 – 21 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | Dimensions (L×W×H) | m | 7.26 / 2.36 / 2.67 |
| Weight | Machine weight | T | 14 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Φ83/89×3000 |
| Mud Pump | |||
| Max. Flow | Max. flow rate | L/min | 600 |
| Max. Pressure | Max. pressure | MPa | 8 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | — |
| Hydraulic Oil Capacity | Hydraulic tank capacity | L | — |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | — |
| Max. Breakout Torque | Max. breakout torque | N·m | — |
| Clamp Range | Clamp through-hole dia., max. | mm | — |
| Distance Between Wrenches | Max. distance between wrenches | mm | — |
