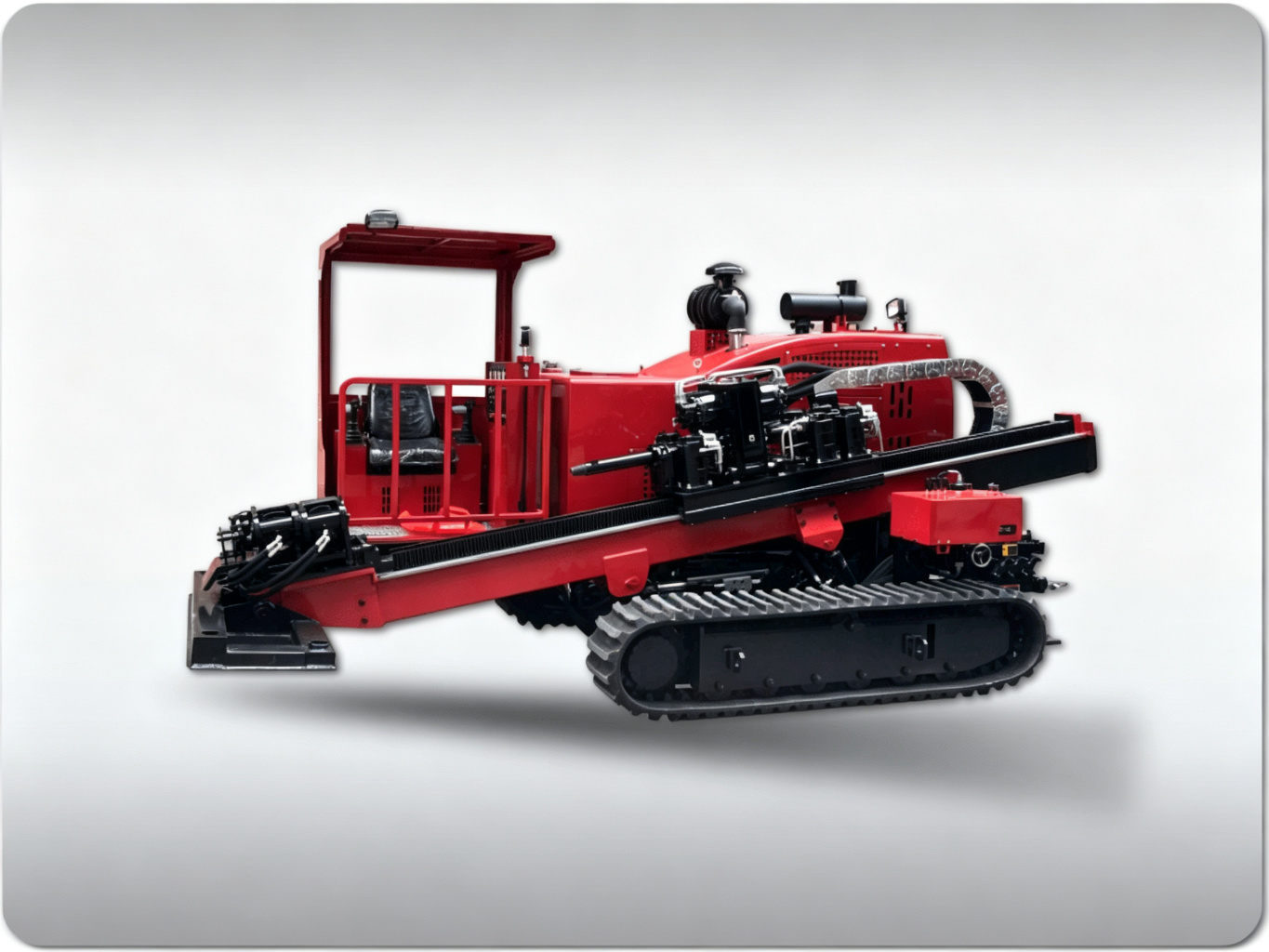

Description
Main Parameters
| Dimensions (L×W×H) | 4.5m / 2.2m / 2.25m | Machine Weight | 5.7 T |
|---|---|---|---|
| Rotary Head Max. Speed | 178 r/min | Rotary Head Max. Torque | 6000 N·m |
| Thrust-Pull Back Force | 0 – 180 kN | Carriage Speed | 38 m/min |
| Engine Power | 96 kW / 2500 rpm | Drill Rod Spec. | Φ60×2000 |
Performance Characteristics
- The main rotary and pull-back pumps are cast-iron pumps, offering high pressure resistance and long service life.
- Two-speed rotation and three-speed thrust/pull, with pilot proportional control for infinitely variable speed adjustment.
- Rotation and thrust/pull are controlled by a multifunctional pilot joystick that integrates all main operating movements into one control point — simple, convenient, comfortable, and efficient.
- Crawler travel features two-speed electric-proportional wire control for safe and reliable operation (optional).
- A four-bar linkage boom lifting mechanism keeps the tracks firmly on the ground even at large drilling angles, effectively ensuring rig stability during both drilling and pull-back operations.
- A clamp spring buffer device prevents accidental drill-rod thread or clamp damage caused by operator error.
- Gear and rack transmission with double pull-back motor reducers drives the rotary head trolley forward and backward.
- The rotary head is driven by piston motors, delivering high torque and strong impact resistance, suitable for complex ground conditions.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 96 |
| Rated Speed | Rated speed | rpm | 2500 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 6000 |
| Max. Speed | Spindle speed, max. | rpm | 178 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-pull back force | kN | 0 – 180 |
| Carriage Speed | Carriage speed | m/min | 0 – 38 |
| Entry Drill Angle | Entry drill angle | ° | 15 – 28 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | Dimensions (L×W×H) | m | 4.5 / 2.2 / 2.25 |
| Weight | Machine weight | T | 5.7 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Φ60×2000 |
| Mud Pump | |||
| Max. Flow | Max. flow rate | L/min | 240 |
| Max. Pressure | Max. pressure | MPa | 8 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 20 – 25 |
| Hydraulic Oil Capacity | Hydraulic tank capacity | L | 430 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 150 |
| Max. Breakout Torque | Max. breakout torque | N·m | 15000 |
| Clamp Range | Clamp through-hole dia., max. | mm | 80 |
| Distance Between Wrenches | Max. distance between wrenches | mm | — |
