Description
Main Parameters
| Dimensions (L×W×H) | 21.6m / 3.2m / 3.7m (main unit) | Machine Weight | 80 T (main) / 32 T (power station) |
|---|---|---|---|
| Rotary Head Max. Speed | 94 r/min | Rotary Head Max. Torque | 320000 N·m |
| Thrust-Pull Back Force | 11000 kN | Carriage Speed | 0 – 45 m/min |
| Engine Power | 563 kW × 4 + 177 kW × 1 | Drill Rod Spec. | — |
Performance Characteristics

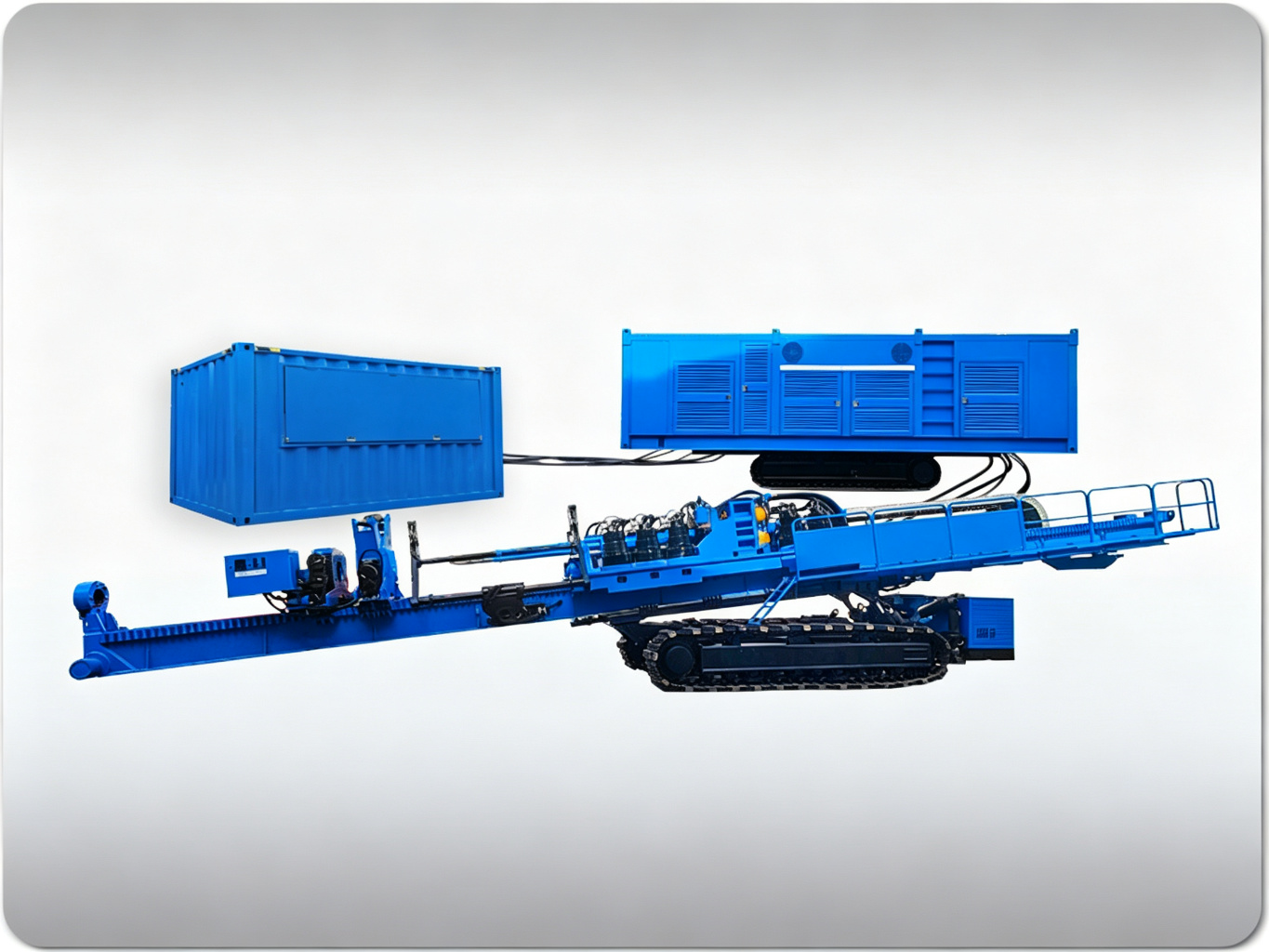

The DDW-1100/320 main unit uses a self-propelled crawler design. It is powered by four Dongfeng Cummins 563 kW Stage III engines, delivering strong power and high reliability. The main hydraulic system uses closed-loop proportional control for high efficiency and energy savings, ensuring the safety and service life of both rotary and pull-back motors even in complex ground conditions and high-load operations. The rotation system uses Poclain low-speed high-torque motors with direct drive — no reducer or separate cooling system — making the system simpler, more reliable, and more efficient. The auxiliary system uses load-sensing proportional control.
The rig is modular in design, with major components that can be split for transport and reassembled on site, solving overweight transport issues. The entire machine is controlled by a PLC system with advanced human-machine interface. All major hydraulic and electrical components use internationally renowned brands for stable performance and low failure rates.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 563 × 4 + 177 × 1 |
| Rated Speed | Rated speed | rpm | 2100 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 320000 |
| Max. Speed | Spindle speed, max. | rpm | 94 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-pull back force | kN | 11000 |
| Carriage Speed | Carriage speed | m/min | 0 – 45 |
| Entry Drill Angle | Entry drill angle | ° | 8 – 12 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | Dimensions (L×W×H) | m | 21.6 / 3.2 / 3.7 (main) · 8.5 / 3.1 / 3.4 (power station) |
| Weight | Machine weight | T | 80 (main) / 32 (power station) |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | — |
| Mud Pump | |||
| Max. Flow | Max. flow rate | L/min | 15 |
| Max. Pressure | Max. pressure | MPa | 4000 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 15 |
| Hydraulic Oil Capacity | Hydraulic tank capacity | L | 1200 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 1140 |
| Max. Breakout Torque | Max. breakout torque | N·m | 710 |
| Clamp Range | Clamp through-hole dia., max. | mm | 360 |
| Distance Between Wrenches | Max. distance between wrenches | mm | 254 |
