Description
| Dimensions (L×W×H) | 19.4 m / 3.25 m / 3.5 m | Machine Weight | 67 T |
| Rotary Head Max. Speed | 90 r/min | Rotary Head Max. Torque | 180,000 N·m |
| Thrust-Pull Back Force | 6,000 kN | Carriage Speed | 0 – 36 m/min |
| Engine Power | 412 kW × 2 | Drill Rod Spec. | Ø168 × 9600 mm |

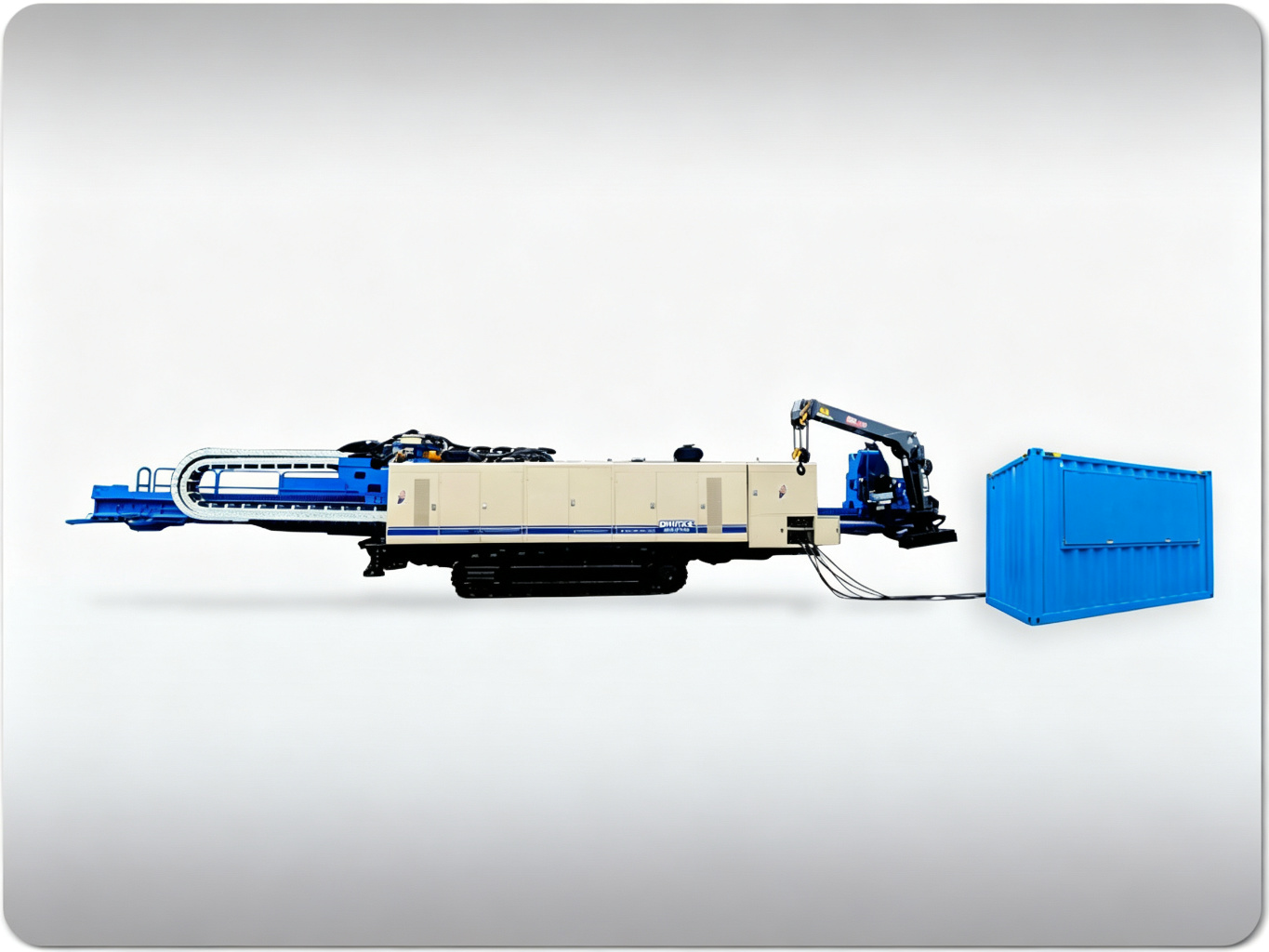

The DDW-500/180 HDD rig adopts a crawler self-propelled chassis. Its power system uses two Dongfeng Cummins 412 kW Stage IV high-power engines, delivering strong power output with high reliability. The main hydraulic system features closed-loop electro-hydraulic proportional control for high efficiency and energy saving, effectively protecting the rotary and pull-back motors under complex formations and high-load conditions, and extending their service life.
The rotation system is driven by Poclain low-speed high-torque motors with direct-drive design — eliminating gearboxes and simplifying the cooling configuration, which makes the system more reliable and efficient. The auxiliary circuit uses a load-sensing proportional control architecture.
The rig is built on a modular design: major components can be split for transport and reassembled on site, solving overweight and oversized transport constraints. The machine control system uses PLC with a powerful human-machine interface. Main hydraulic and electrical components are sourced from internationally renowned brands for stable performance and low failure rate.
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 412 × 2 |
| Rated Speed | Rated speed | rpm | 2,100 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 180,000 |
| Max. Speed | Spindle speed, max. | rpm | 90 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 0 – 6,000 |
| Carriage Speed | Carriage speed | m/min | 0 – 36 |
| Entry Drill Angle | Entry drill angle | ° | 8 – 12 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 19.4 × 3.25 × 3.5 |
| Weight | Machine weight | T | 67 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Ø168 × 9600 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 3,000 |
| Max. Pressure | Max. pressure | MPa | 20 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 38 |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | 670 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 940 |
| Max. Break Torque | Max. break torque | N·m | 420 |
| Clamp Range | Clamp range, max. | mm | 320 |
| Wrench Separation | Distance between wrenches, max. | mm | 255 |
