Description
Main Parameters
| Dimensions (L×W×H) | 6.4 m / 2.2 m / 2.42 m | Machine Weight | — |
| Rotary Head Max. Speed | 188 / 240 r/min | Rotary Head Max. Torque | 7,000 / 1,220 N·m |
| Thrust-Pull Back Force | 0 – 200 kN | Carriage Speed | 38 m/min |
| Engine Power | 125 kW / 2,200 rpm | Drill Rod Spec. | AT30 |
Performance Characteristics

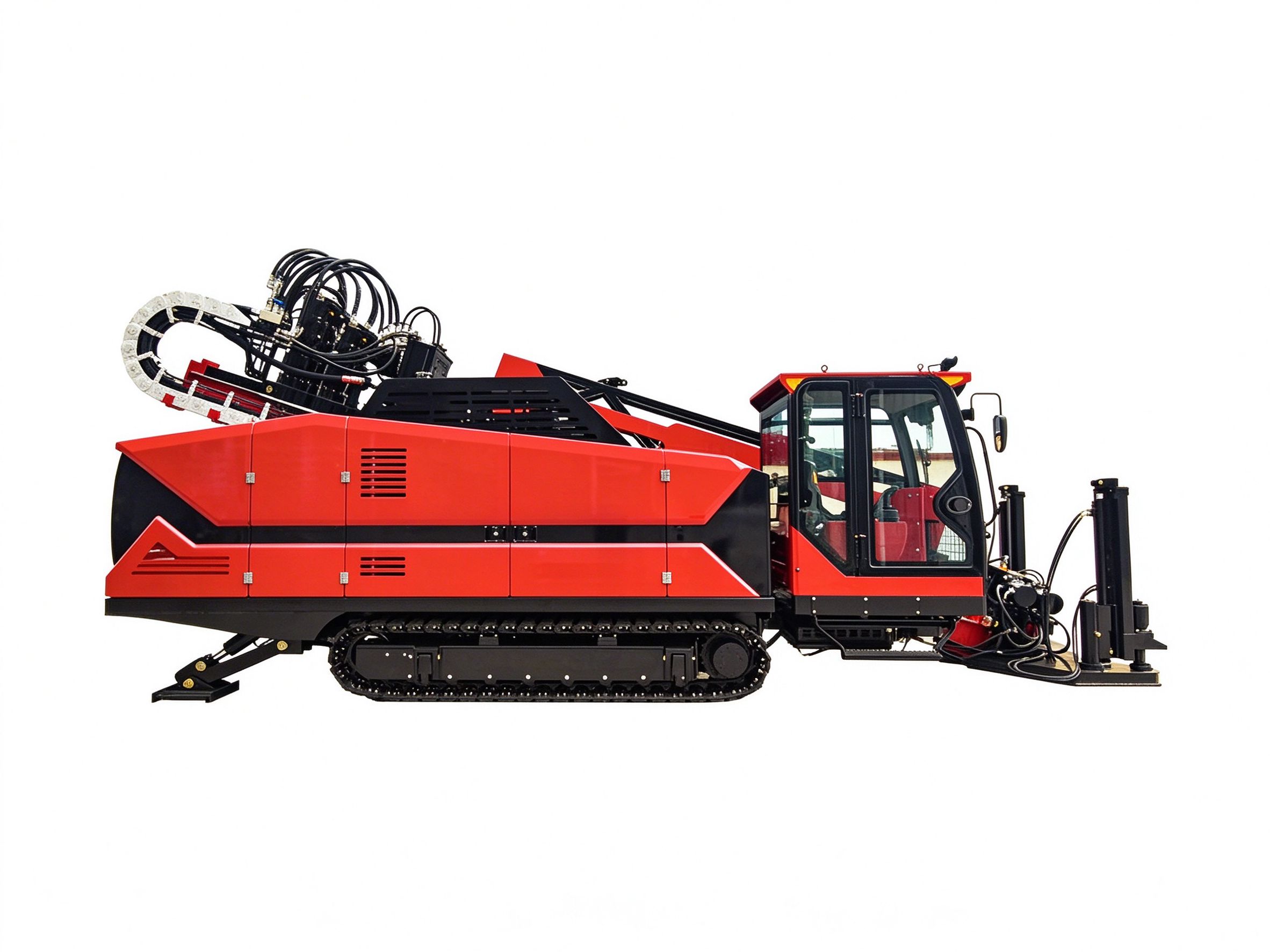

- The DDW-2010AT is an all-terrain pipe-laying HDD rig, suitable for pipeline installation across a wide range of complex ground conditions.
- Rotary thrust/pull-back adopts PLC-controlled constant-power electro-hydraulic control with a load-sensitive system, improving overall efficiency by 20% compared with conventional open-loop systems. It also enhances engine fuel efficiency, lowers operating costs, and delivers energy-saving and environmentally friendly performance. The hydraulic pump is a piston pump with higher pressure rating, longer service life, and greater system efficiency.
- Rotation, thrust/pull-back, and crawler travel each offer two speed ranges with proportional control and infinitely variable speed adjustment.
- Rotation and thrust/pull-back are controlled by a multifunctional joystick that integrates all main operating movements into one ergonomic control point — simple, convenient, comfortable, and efficient.
- Both inner and outer rotation functions are driven by imported Rexroth piston motors, delivering high torque and strong impact resistance.
- Gear and rack transmission with dual pull-back motor reducers drives the rotary head trolley forward and backward.
- Crawler travel is wire-controlled for safe and reliable operation.
- The boom lifting mechanism keeps the tracks firmly on the ground even at maximum drilling angles, effectively ensuring rig stability during both drilling and pull-back operations.
- The clamp is angled inward toward the operator, making clamp work easy to observe and monitor.
- A clamp spring buffer device prevents accidental drill-rod thread or clamp damage caused by operator error.
- Welded steel chassis fitted with rubber shoes adapts to various road surfaces, offering high structural strength and long service life.
- Standard equipment includes a mechanical rod handler, enclosed cabin, and air conditioning, providing a comfortable working environment for drilling crew members and improving overall work efficiency.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 125 |
| Rated Speed | Rated speed | rpm | 2,200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 7,000 / 1,220 |
| Max. Speed | Spindle speed, max. | rpm | 188 / 240 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 0 – 350 |
| Carriage Speed | Carriage speed | m/min | 0 – 60 |
| Entry Drill Angle | Entry drill angle | ° | 14 – 19 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 6.4 × 2.2 × 2.42 |
| Weight | Machine weight | T | — |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | AT30 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 350 |
| Max. Pressure | Max. pressure | MPa | 10 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | 8 |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | 400 |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | 258 |
| Max. Break Torque | Max. break torque | N·m | 15,000 |
| Clamp Range | Clamp range, max. | mm | 90 |
| Wrench Separation | Distance between wrenches, max. | mm | — |
