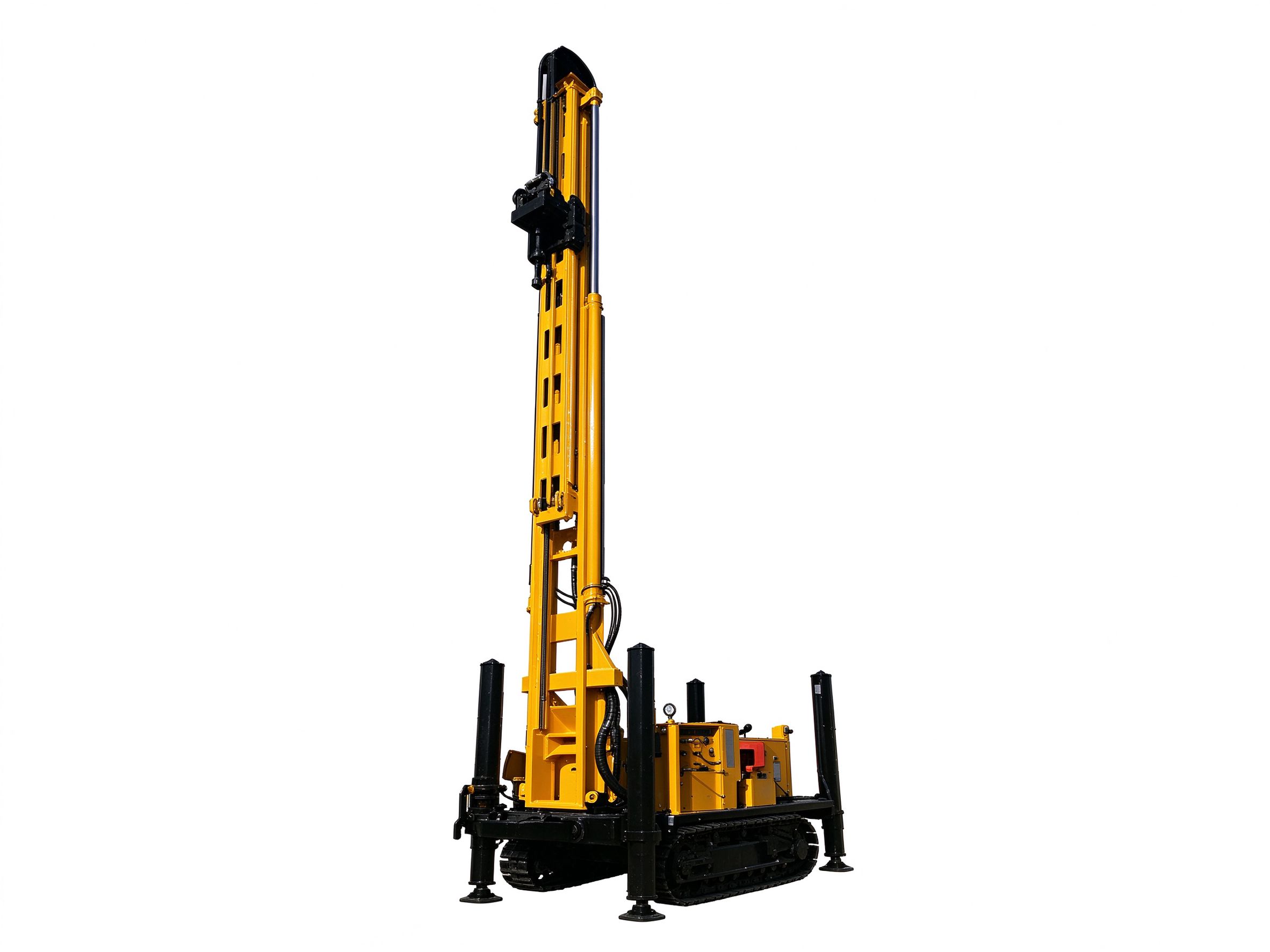

Crawler Mounted Telescoping Mast Well Drilling Rig
Efficient, multifunctional hydraulic crawler rig with telescoping mast design.
Rated Drilling Depth: 600 m
Handles casing up to 6 meters. Suitable for water wells, monitoring boreholes, geothermal boreholes, and defense projects.
Product Overview
This is a new, efficient, multifunctional hydraulic crawler mounted telescoping mast well drilling rig, mainly applicable to the drilling process of water wells, monitoring boreholes, geothermal boreholes, constructions like dams, reinforced bases, and defense projects. The telescoping mast design allows efficient drilling in confined spaces while the crawler undercarriage provides excellent mobility on various terrains.
Key Features
- The rig is able to handle casing pipe size up to 6 meters.
- When drilling in rock layers, the rig adopts a DTH hammer for penetration and compressed air for cleaning, with high penetration speed.
- In loose rock, the rig employs a hammer and casing as well as mud drilling.
- Hydraulic supporters facilitate the rig erection on site without a crane.
Technical Specifications
| Rated Drilling Depth | 600 m |
| Borehole Diameter | 140 – 350 mm |
| Engine Power | 132 kW |
| Max. Lifting Force | 32 t |
| Axial Pressure | ±10 t |
| Lifting Force of Small Winch | 1.5 t |
| Rotation Torque | 11,000 N·m |
| Rotation Rate | 0 – 40 / 80 rpm |
| Feeding Stroke | 7,000 mm |
| Hydraulic Supporting Leg Stroke | 1,650 mm |
| Lifting Rate | 0 – 15 m/min |
| Grade Ability | 15° |
| Transport Dimension (L × W × H) | 6800 × 2250 × 2750 mm |
| Working Dimension (L × W × H) | 6800 × 3250 × 12900 mm |
| Weight | 13.7 t |
| Hydraulic Generator (Optional) | 24 kW / 380 V |
| Centrifugal Mud Pump (Optional) | 1,500 L/min |
| Plunger Mud Pump (Optional) | 1,000 L/min |
Get a Quote
If you’re interested in this Crawler Mounted Telescoping Mast Well Drilling Rig or need more information on its specifications and pricing, please contact us today for a customized quote.
