Description

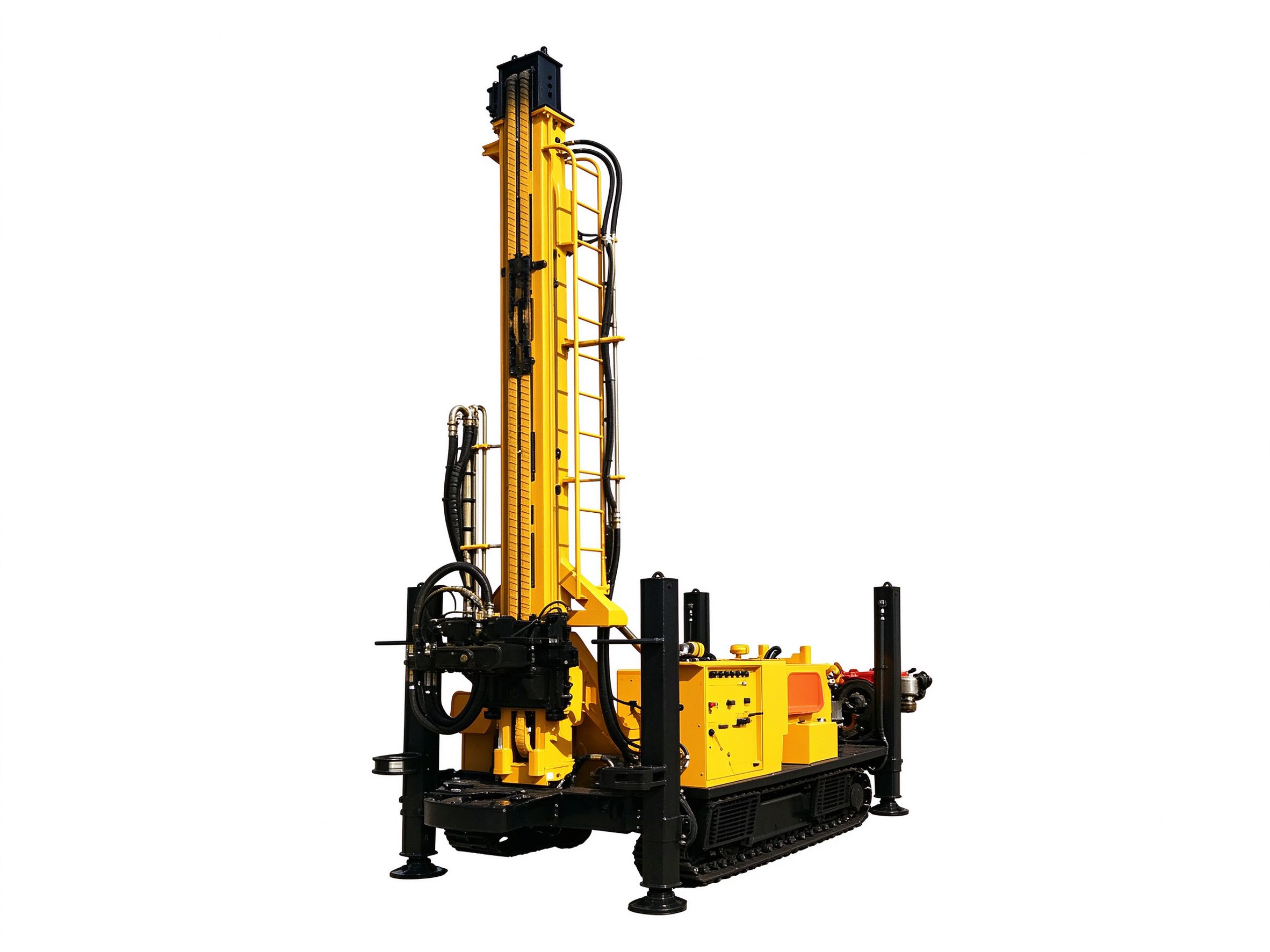

Crawler Mounted Versatile Well Drilling Rig
A new, efficient, and versatile hydraulic percussive well drilling rig.
Rated Drilling Depth: 500 m
Suitable for water wells, monitor boreholes, geothermal boreholes, grouting, anchor reinforcement, and defense projects.
Product Overview
This crawler mounted versatile well drilling rig is a new, efficient, and multifunctional drilling rig, mainly applicable to all kinds of drilling processes of water wells, monitor boreholes, and geothermal boreholes, grouting holes of cofferdams, dams, and reinforced bases, as well as long-hole drilling of open pits, anchor reinforcement, and defense projects. The rig is equipped with a powerful hydraulic motor, heavy-duty hydraulic drilling arm, and high-pressure DTH percussive hammer, delivering faster drilling speed than other rig types.
Key Features
- Powerful hydraulic motor and heavy-duty hydraulic drilling arm for demanding drilling conditions.
- High-pressure DTH percussive hammer delivers fast penetration in rock formations.
- Versatile design handles water wells, geothermal boreholes, grouting holes, anchor reinforcement, and open-pit long-hole drilling.
- Crawler undercarriage provides excellent mobility across various job sites.
Technical Specifications
| Rated Drilling Depth | 500 m |
| Drilling Diameter | 105 – 350 mm |
| Working Air Pressure | 1.05 – 4.5 MPa |
| Air Consumption | 16 – 60 m³/min |
| Drill Pipe Diameter | Ø89 mm / Ø102 mm / Ø114 mm |
| Max. Lifting Force | 25 t |
| Axial Pressure | ±10 t |
| Lifting Force of Small Winch | 1.5 t |
| Lifting Force of Main Winch | 4 t (optional) |
| Rotation Torque | 9,500 N·m |
| Rotation Rate | 0 – 40 / 80 rpm |
| Feeding Force | 3,800 mm |
| Lifting Rate | 0 – 18 m/min |
| Grade Ability | 15° |
| Hydraulic Generator (Optional) | 24 kW / 380 V |
| Foam Pump (Optional) | 20 L/min |
| Transport Dimension (L × W × H) | 6800 × 2250 × 2650 mm |
| Working Dimension (L × W × H) | 6800 × 3250 × 7500 mm |
| Weight | 13 t |
Get a Quote
If you’re interested in this Crawler Mounted Versatile Well Drilling Rig or need more information on its specifications and pricing, please contact us today for a customized quote.
