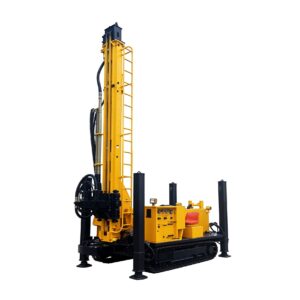

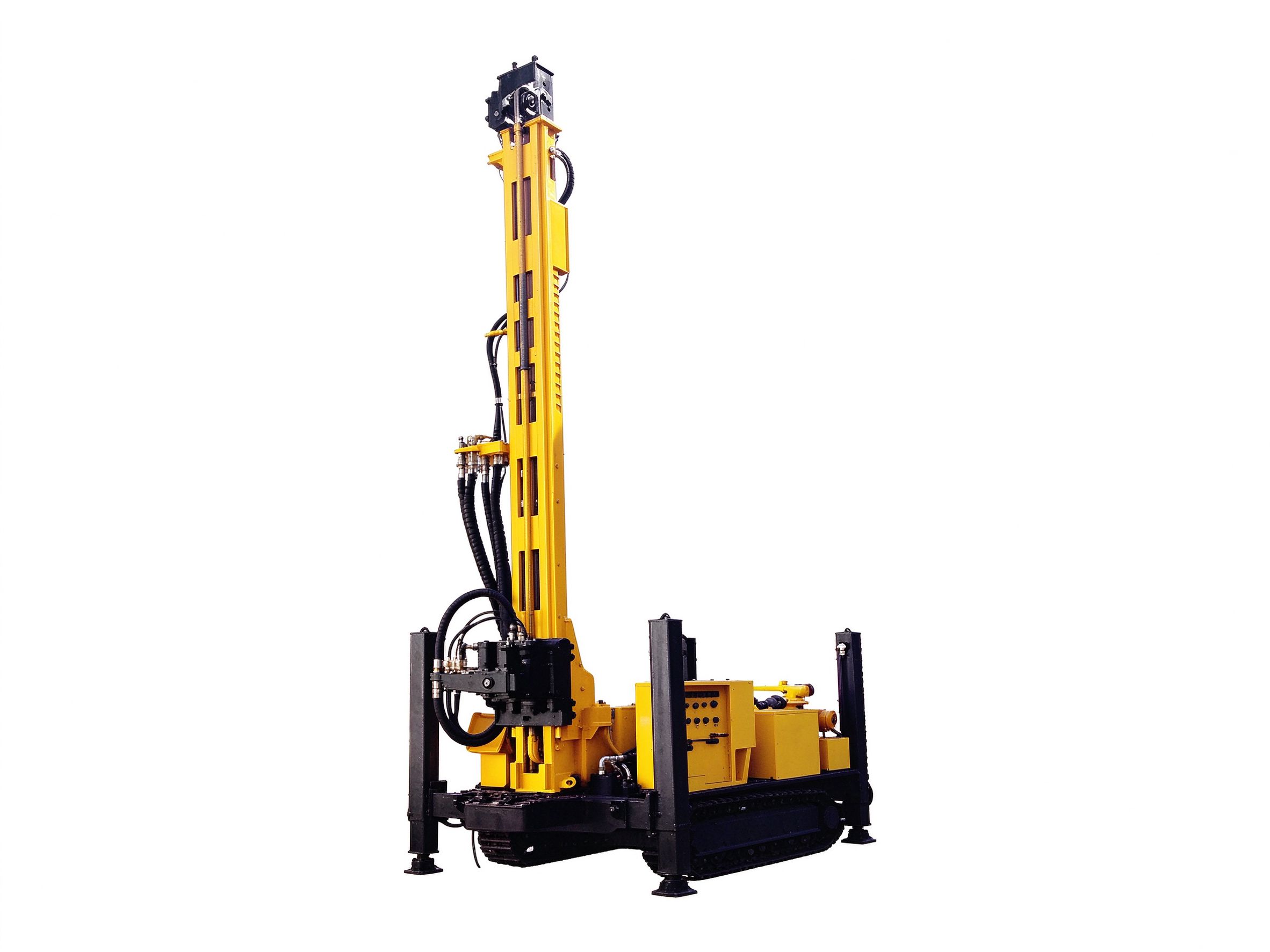

Crawler Mounted Versatile Well Drilling Rig
Built for high-efficiency drilling in water wells, geothermal wells, and mineral exploration.
Rated Drilling Depth: 300 m
Compact design adapted to various construction sites.
Product Overview
This crawler mounted versatile well drilling rig is designed for high-efficiency drilling in a variety of applications, including water wells, geothermal drilling, and mineral exploration. Built for tough terrain, it offers excellent mobility and stability, ensuring reliable and precise drilling performance in any environment. Its robust design and advanced features make it an ideal choice for contractors and professionals in the drilling industry.
Key Features
- A new type of efficient and versatile hydraulic rig, mainly applicable to the drilling process of water wells, monitor wells, and geothermal wells.
- When drilling in rock formations, the rig adopts a DTH hammer for penetration and compressed air for cleaning, with a penetration speed many times faster than conventional rotary rigs.
- In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the hole, suiting all kinds of complex geological conditions.
- Winch can lift drill string upwards of 6 m, facilitating pipe installation.
- Hydraulic supporters facilitate rig erection on site without a crane.
- Compact size makes it adaptable to various kinds of construction sites.
Applications
This rig is ideal for a variety of drilling operations:
- Water well drilling
- Geothermal drilling
- Mineral exploration and mining
- Construction and foundation drilling
Technical Specifications
| Rated Drilling Depth | 300 m |
| Borehole Diameter | 105 – 350 mm |
| Engine Power | 92 kW |
| Maximum Lifting Force | 15 T |
| Small Winch Lifting Force | 1.5 T |
| Rotation Torque | 8,500 N·m |
| Rotation Rate | 0 – 40 / 80 rpm |
| Feeding Stroke | 3,600 mm |
| Lifting Speed | 0 – 18 m/min |
| Grade Ability | 15° |
| Hydraulic Generator (Optional) | 24 kW / 380 V |
| Flow of Foam Pump (Optional) | 20 L/min |
| Dimension (L × W × H) | 6300 × 2000 × 2300 mm |
| Working Size (W × H) | 3100 × 6900 mm |
| Weight | 8.5 T |
Customer Feedback
“This rig has been an incredible addition to our drilling fleet. Its performance, especially in challenging terrains, has exceeded our expectations. The fuel efficiency is a major plus for us.”
Get a Quote
If you’re interested in this Crawler Mounted Versatile Well Drilling Rig or need more information on its specifications and pricing, please contact us today for a customized quote. Our team is ready to help you with your drilling needs.
