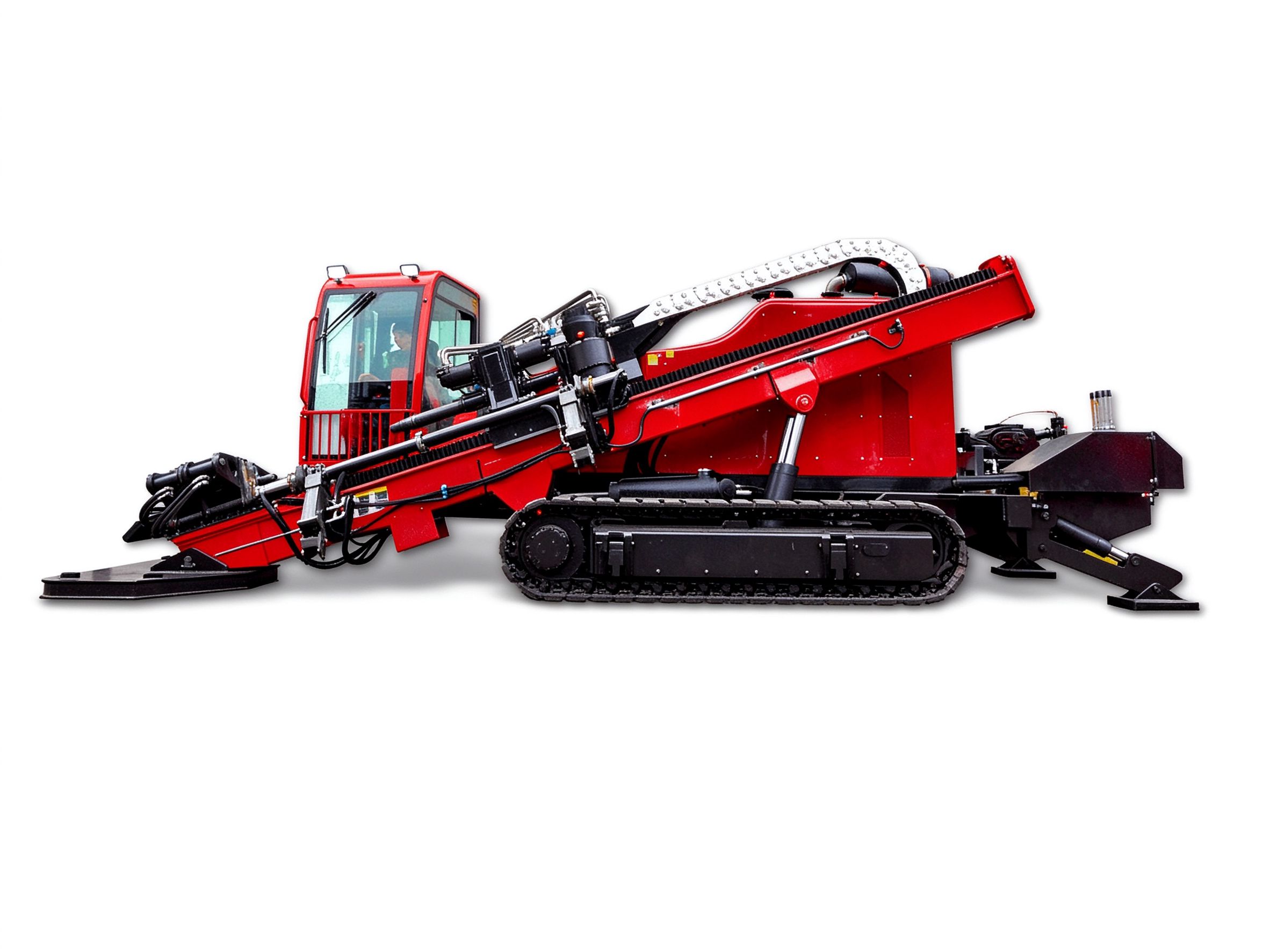

Description
Main Parameters
| Dimensions (L×W×H) | 6.5 m / 2.28 m / 2.6 m | Machine Weight | 11 T |
| Rotary Head Max. Speed | 160 r/min | Rotary Head Max. Torque | 13,000 N·m |
| Thrust-Pull Back Force | 0 – 360 kN (720 kN optional) | Carriage Speed | 0 – 38 m/min |
| Engine Power | 154 kW | Drill Rod Spec. | Ø73 / 76 × 3000 mm |
Performance Characteristics
- Equipped with a Cummins Stage III electronically controlled turbocharged diesel engine, delivering strong power output and reliable, stable performance.
- Hydraulic system features a simple, robust structure with stable performance and easy maintenance and servicing.
- Pilot hydraulic control with integrated joystick for comfortable, ergonomic operation.
- A four-bar linkage boom lifting mechanism keeps the tracks firmly on the ground even at maximum drilling angles, effectively ensuring rig stability during both drilling and pull-back operations.
- The clamp is angled 10 degrees inward toward the operator, making clamp operations easy to observe and monitor.
- A clamp spring buffer device prevents accidental drill-rod thread or clamp damage caused by operator error.
- Welded steel chassis fitted with rubber track shoes, offering high structural strength and long service life.
- Gear and rack transmission with dual pull-back motor reducers drives the rotary head trolley forward and backward.
- Standard equipment includes a flip-over mechanical rod handler, enclosed cabin, and air conditioning.
- The rotary head is prepped for optional force amplification, allowing thrust/pull-back to be upgraded to 720 kN; compatible drill rods include Ø73×3000 and Ø76×3000 mm. Please specify at time of order.
Technical Specifications
| Parameters | Description | Unit | Specification |
|---|---|---|---|
| Engine | |||
| Power | Rated power | kW | 154 |
| Rated Speed | Rated speed | rpm | 2,200 |
| Rotary Head Unit | |||
| Max. Torque | Spindle torque, max. | N·m | 13,000 |
| Max. Speed | Spindle speed, max. | rpm | 160 |
| Mast Type | |||
| Thrust-Pull Back Force | Thrust-Pull back force | kN | 360 |
| Carriage Speed | Carriage speed | m/min | 0 – 38 |
| Entry Drill Angle | Entry drill angle | ° | 15 – 20 |
| Track Chassis (Steel Crawler) | |||
| Transport Dimensions | L × W × H | m | 6.5 × 2.28 × 2.6 |
| Weight | Machine weight | T | 10.5 |
| Drill Rod Spec. | Drill rod (Dia. × Length) | mm | Ø73 / 76 × 3000 |
| Mud Pump | |||
| Max. Flow | Max. flow | L/min | 350 |
| Max. Pressure | Max. pressure | MPa | 10 |
| Hydraulic System | |||
| Working Pressure | Working pressure | MPa | — |
| Hydraulic Capacity | Hydraulic oil tank capacity | L | — |
| Clamp | |||
| Max. Clamp Force | Max. clamp force | kN | — |
| Max. Break Torque | Max. break torque | N·m | — |
| Clamp Range | Clamp range, max. | mm | — |
| Wrench Separation | Distance between wrenches, max. | mm | — |
