Product Overview

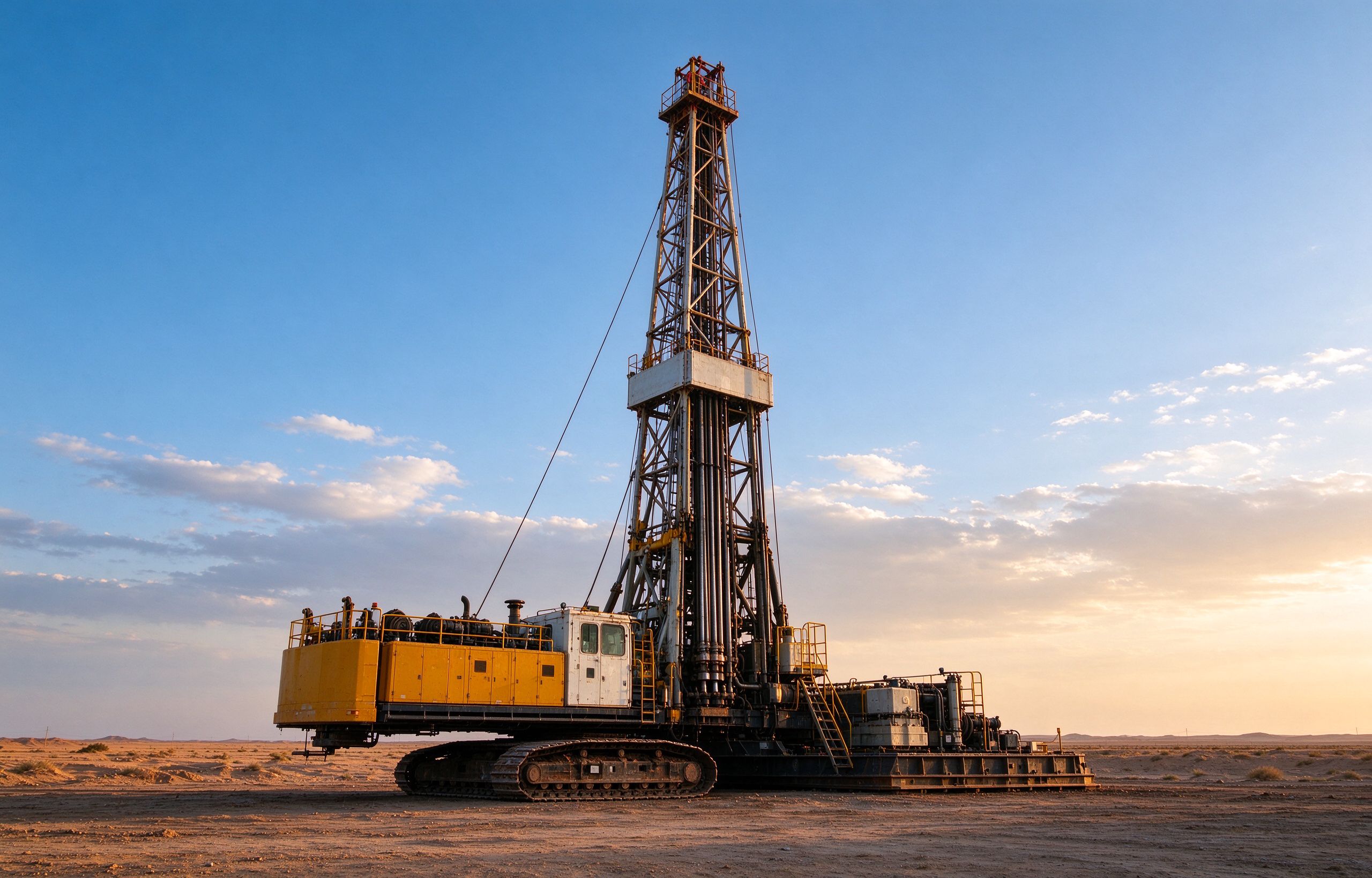

Land drilling rigs are the most common type of drilling platform, designed for onshore oil and gas exploration and production. They are widely used in regions with rich shallow to medium-depth hydrocarbon reserves, where equipment can access reservoirs without the challenges of offshore operations.
A typical land rig consists of a derrick, drill string, mud circulation system, and work floor. Compared to offshore rigs, these units are easier to transport, maintain, and relocate. Their lower installation cost makes them the preferred choice for projects in Texas, the Middle East, Central Asia, and other onshore resource-rich regions.
Key Features
- Drilling depth range from 1,000 m to 7,000 m, hook load 1,350 – 4,500 kN
- Mechanical, DC, and AC variable-frequency drive configurations available
- Modular design for rapid mobilization, rig-up, and relocation between well sites
- K-type mast with high load capacity and reliable structure
- Integrated mud circulation and solids control system
- Desert-rated, low-temperature, and winterized packages for extreme environments
- API certified components and full compliance with international standards
Technical Specifications
| Parameter | Unit | ZJ15 | ZJ30 | ZJ50 | ZJ70 |
|---|---|---|---|---|---|
| Nominal drilling depth | m | 1,500 | 3,000 | 5,000 | 7,000 |
| Max. hook load | kN | 1,350 | 2,250 | 3,150 | 4,500 |
| Drawworks power | HP | 750 | 1,000 | 1,500 | 2,000 |
| Mast height | m | 31 | 41 | 45 | 45 |
| Rotary table opening | mm | 444.5 | 520 | 660 | 952.5 |
| Power package | — | Diesel-mech | Diesel / AC VFD | AC VFD | AC VFD |
| Mud pump | — | 2 × F-500 | 2 × F-800 | 2 × F-1600 | 2 × F-1600 |
