Description
Drilling Diameter
Φ165 – Φ235
Drilling Depth
30 m
Engine Power
563 kW
Machine Weight
28,000 kg
Main Features

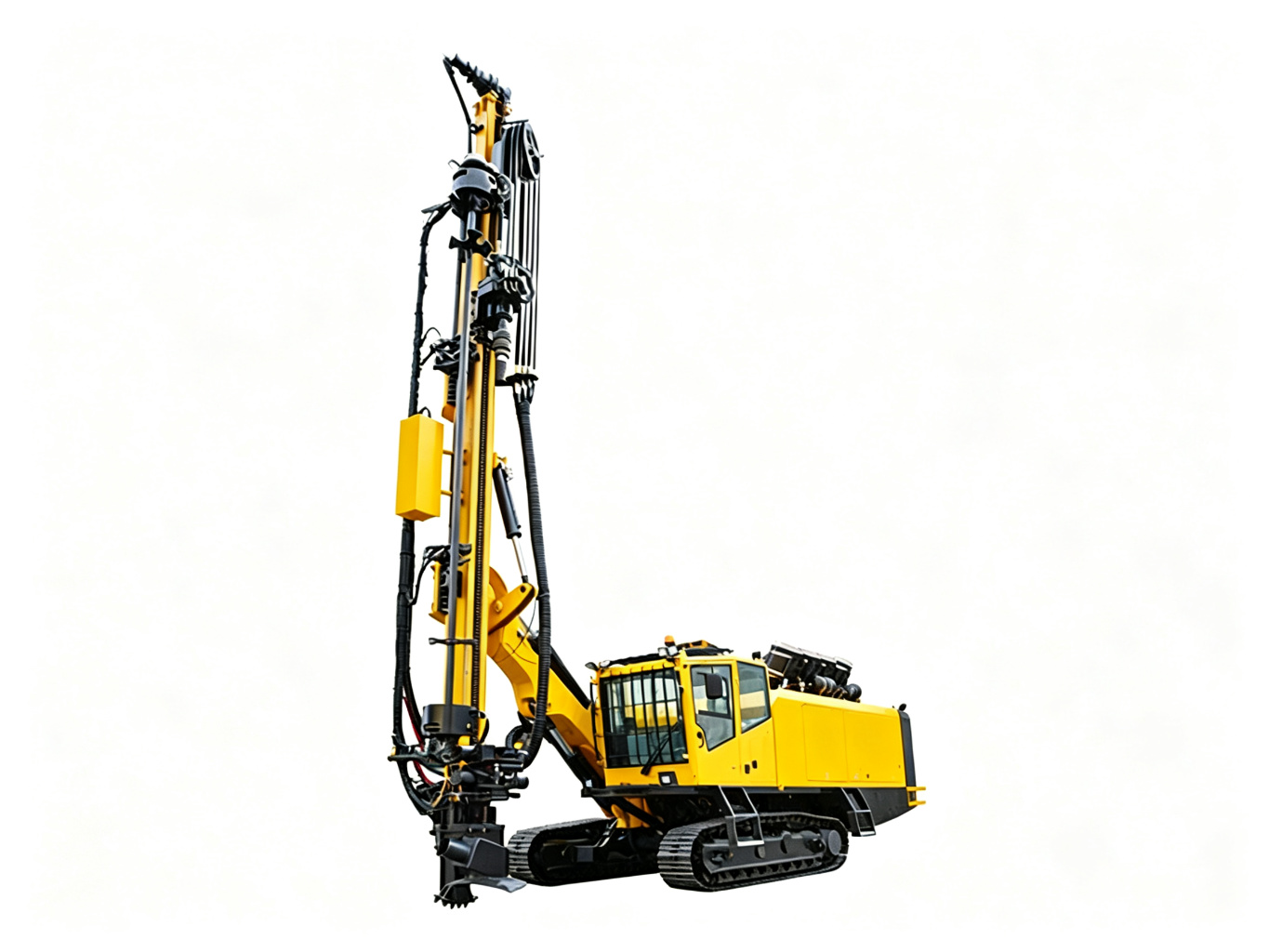

The JK850 integrated full-hydraulic DTH drilling rig is engineered to deliver higher automation and drilling efficiency. It runs reliably and is simple to operate. It comes standard with a FOPS-compliant cabin, an automatic rod-changing system, and a widened heavy-duty undercarriage for fast site mobility while maintaining superior safety. The hydraulic dust suppression system meets mining environmental requirements, making it a reliable solution for modern green mining operations.
Working Conditions
The JK850 integrated full-hydraulic DTH drilling rig delivers higher automation and drilling efficiency, with reliable performance and simple operation, suitable for a wide range of mining and quarrying applications.
Technical Specifications
Drilling Diameter
Φ165 – Φ235 mm
Drilling Depth
30 m
Rock Hardness Rating
f = 6 – 20
Engine Power
563 kW
Dimensions (L×W×H)
12700 × 3200 × 4270 mm
Machine Weight
28,000 kg
